2015+ Subaru WRX FA20DIT FMIC Install Guide


2015+ Subaru WRX FA20DIT Front Mount Intercooler Kit w/ Bumper Beam

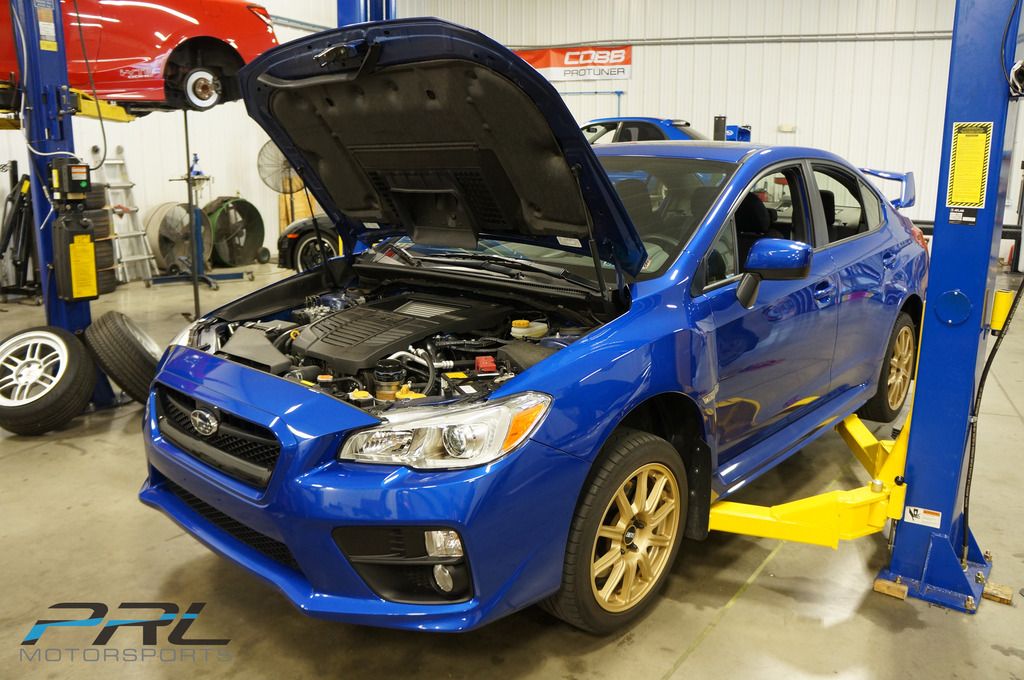

The test subject

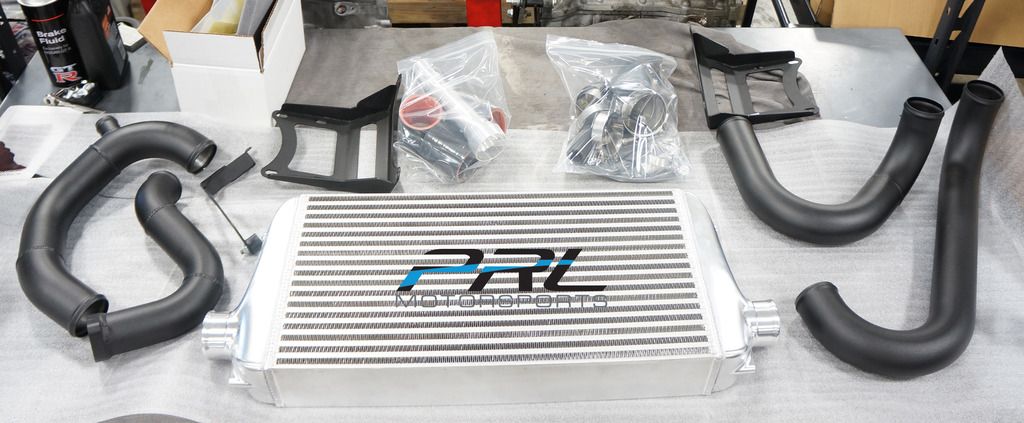

Unboxing our FMIC kit with all of its contents

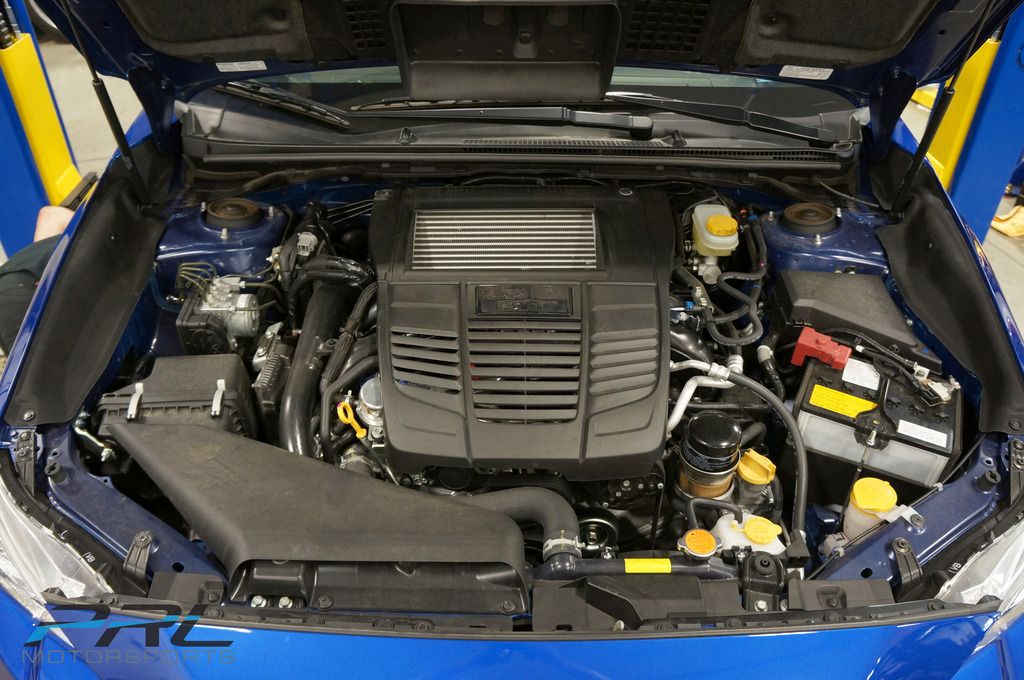

Take one last look at this clustered engine bay, because you won’t be seeing this anymore

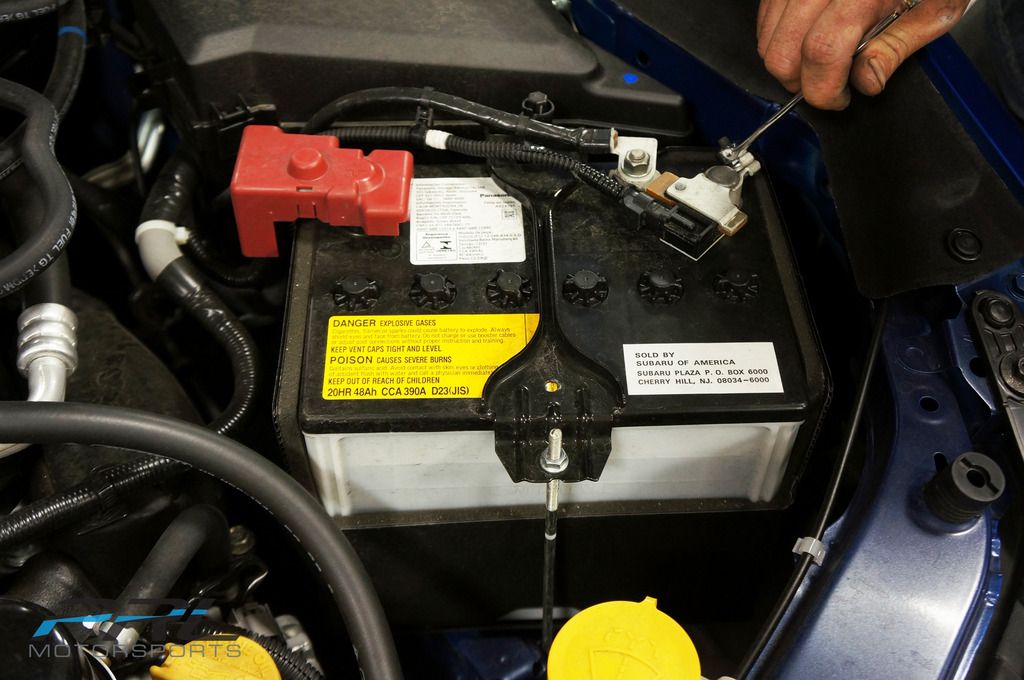

Disconnect the negative battery cable from the battery to avoid electric shock

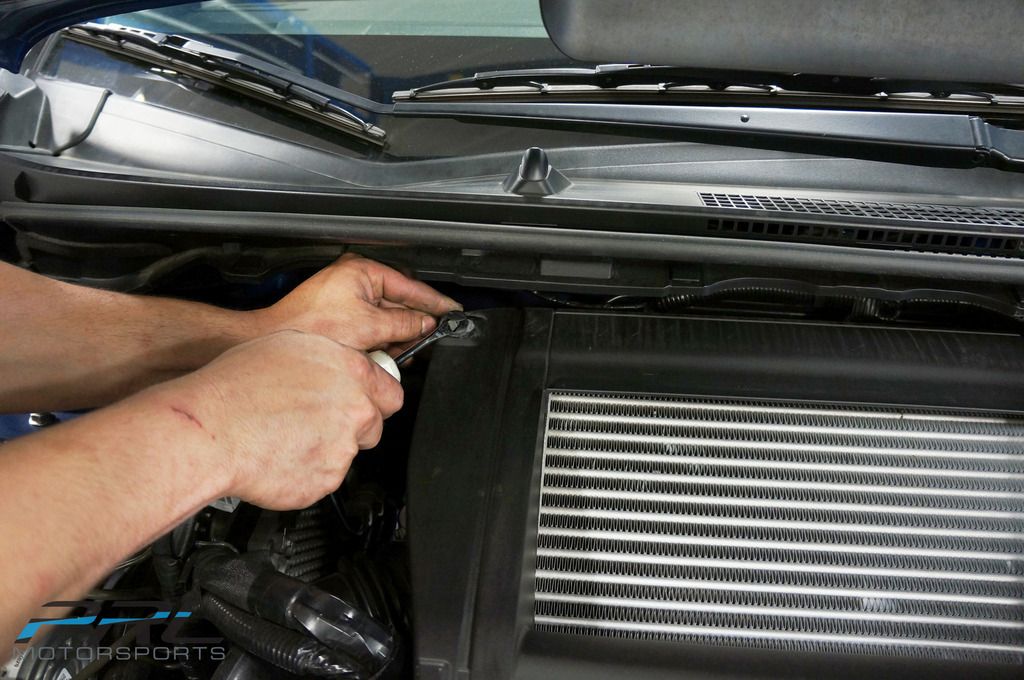

Remove the plastic clips that hold the cover down on the factory top mount intercooler

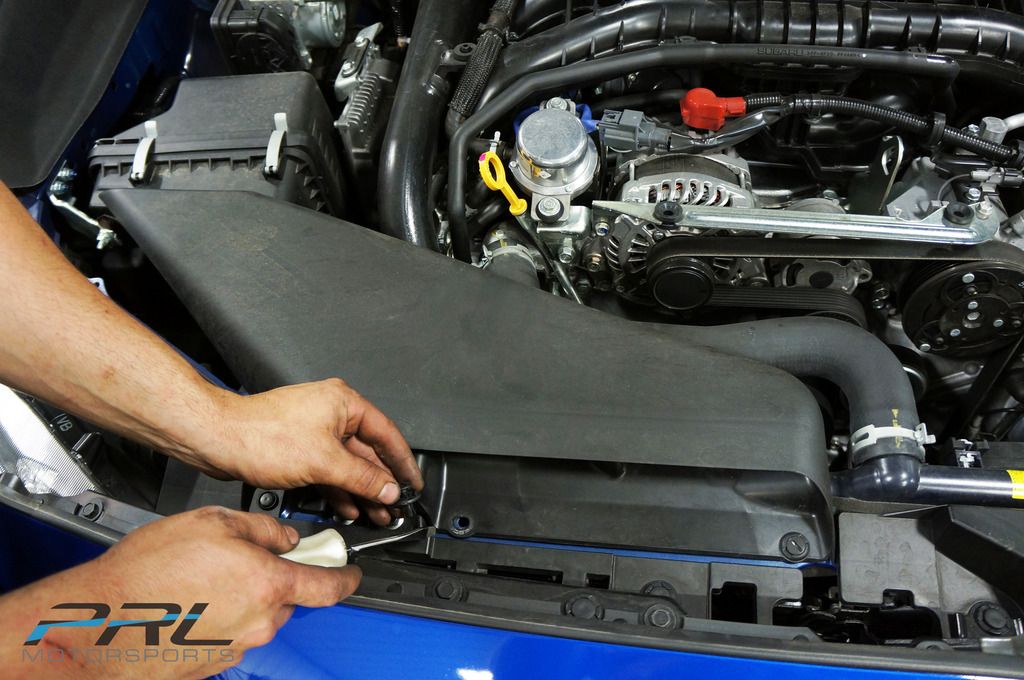

Remove the plastic clips that hold down the intake air duct

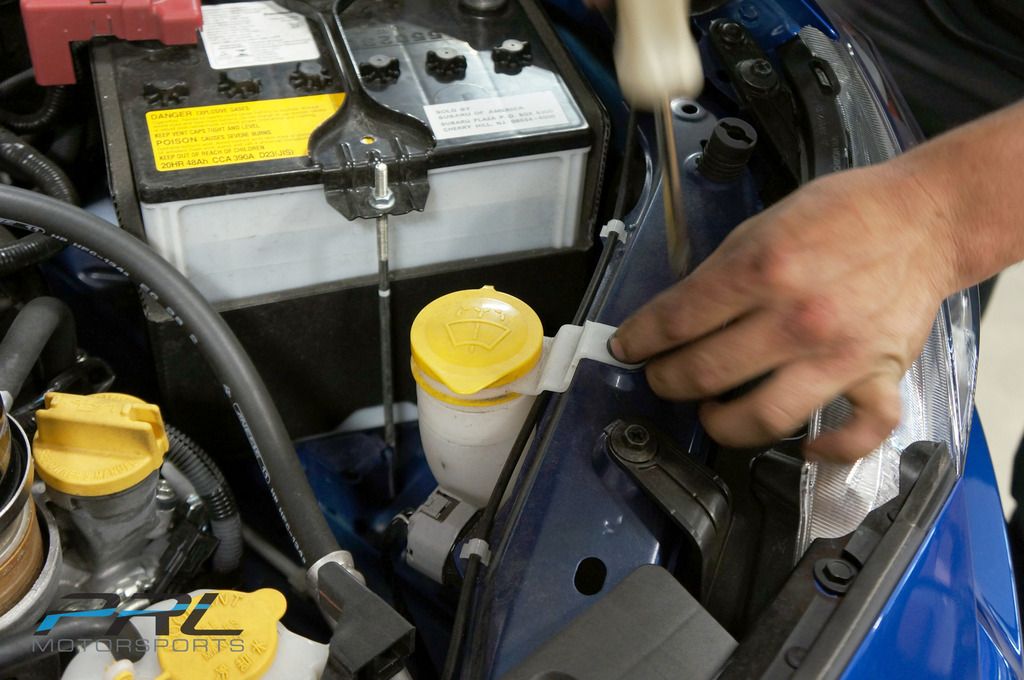

Remove the clip holding down the windshield washer fluid filler neck so that we can relocate using our supplied billet piece.

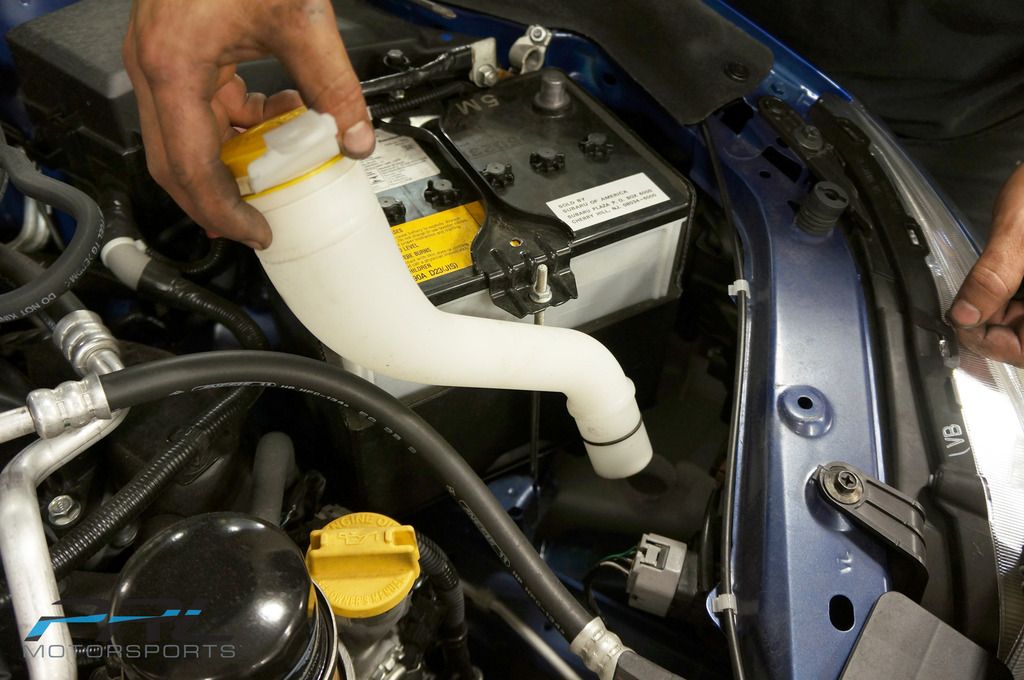

Pop the windshield washer fluid filler neck out. Please note that this is held in with an O-ring.

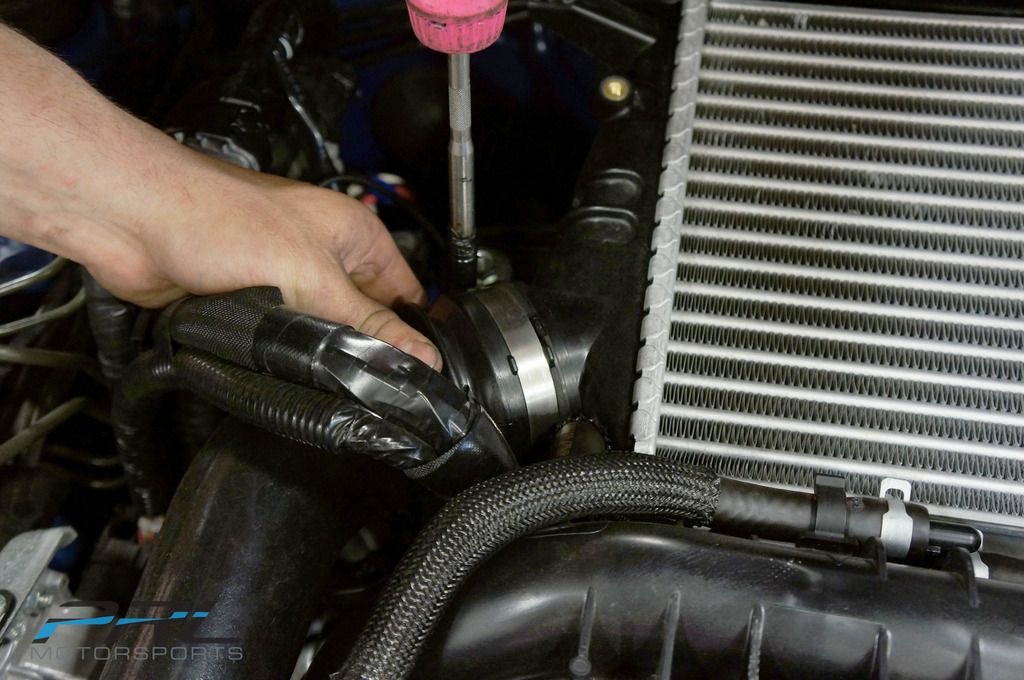

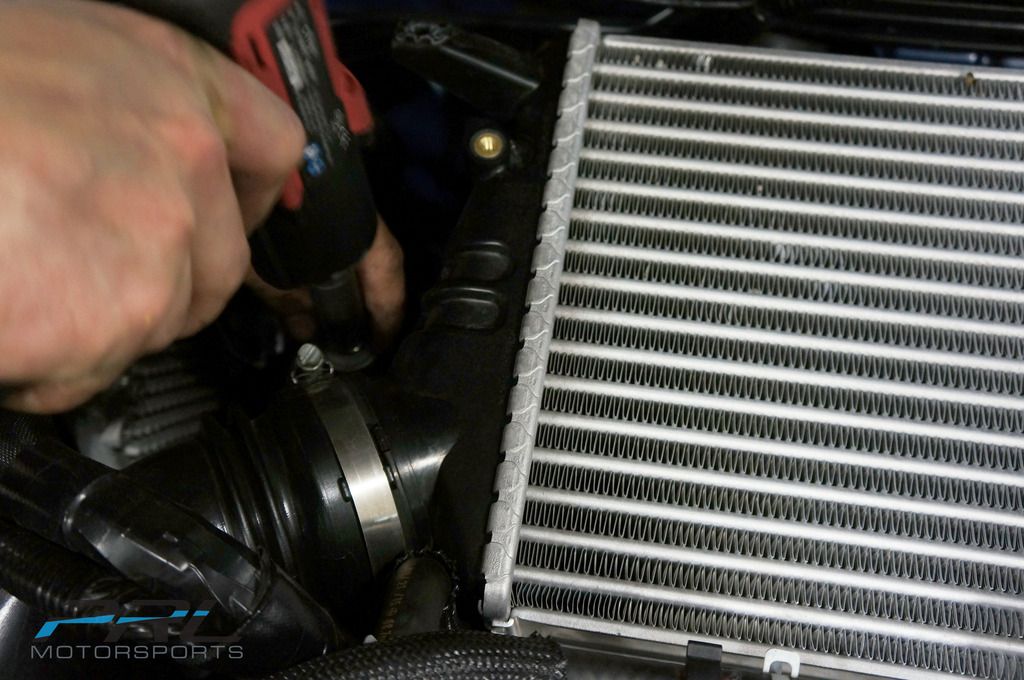

Loosen the factory charge pipe clamp on the passenger side of the intercooler

Repeat the same process for the driver’s side throttle body hose clamp

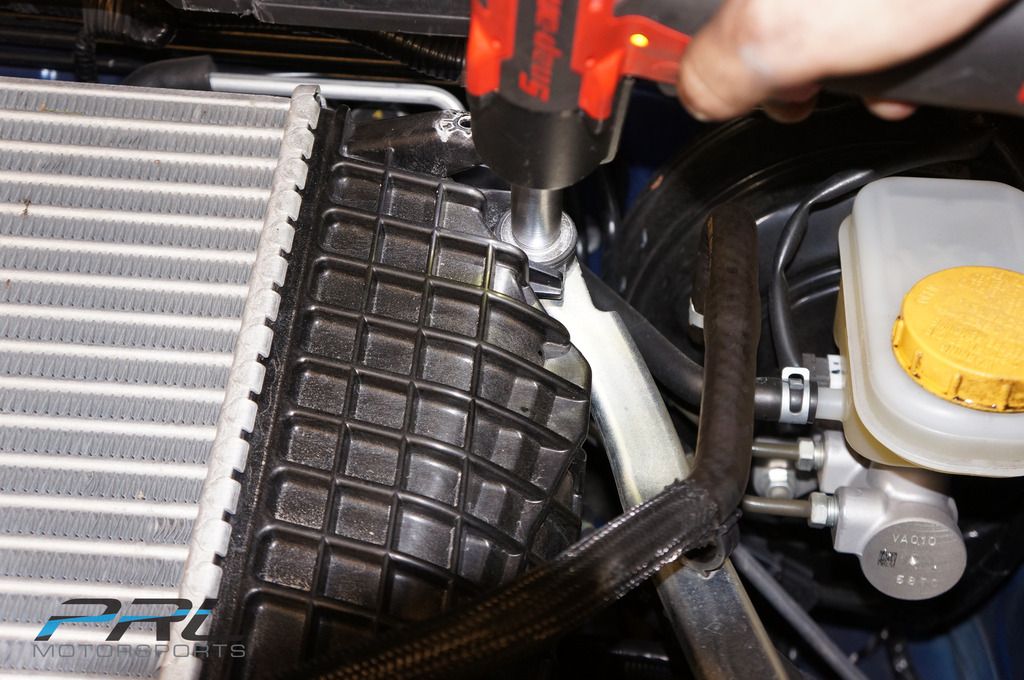

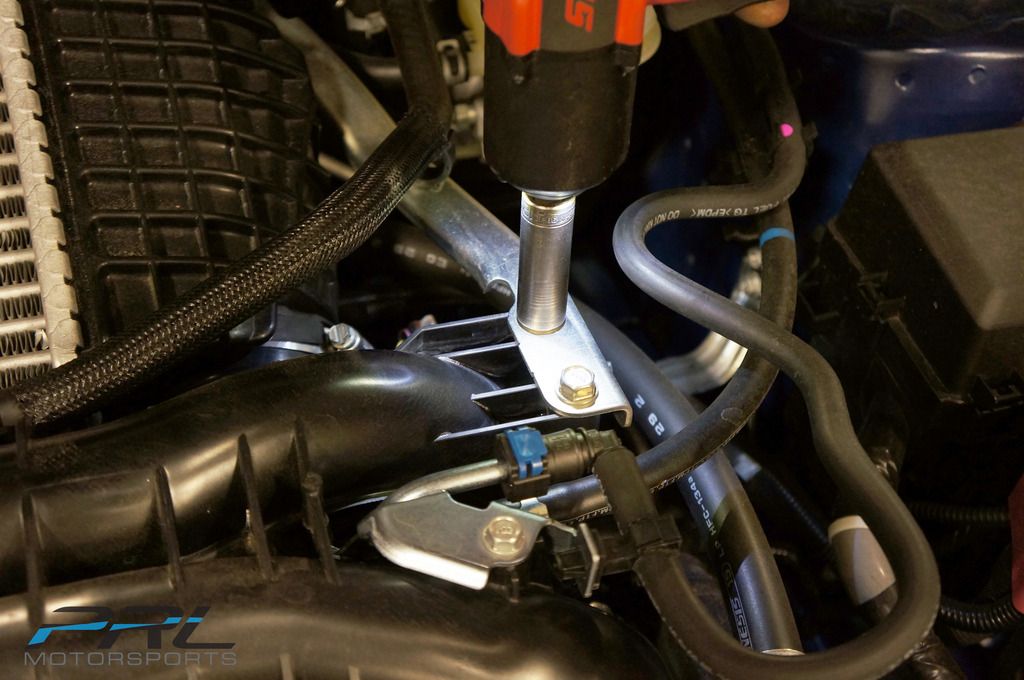

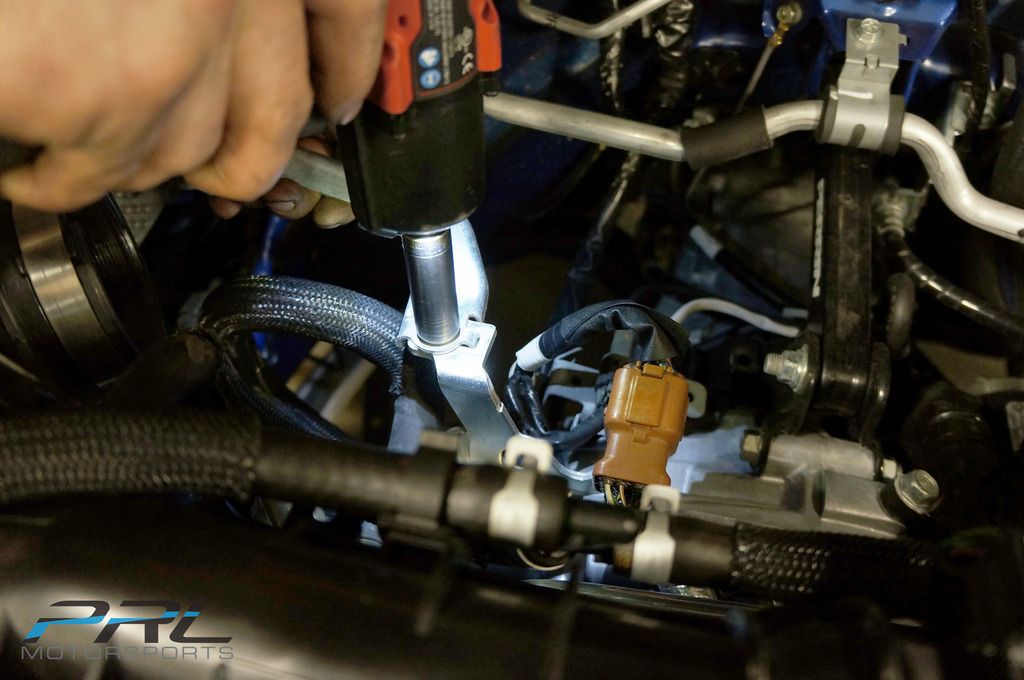

Remove the 12mm intercooler mounting bolts

Your engine bay should now look like this

1 2 3 4 5 6 7
Pages ( 1 of 7 ): 1 23 ... 7Next »
